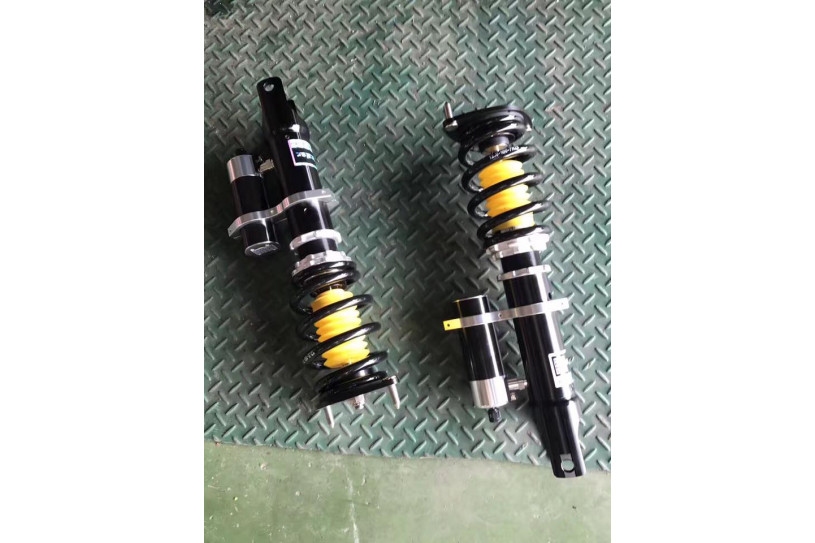

Coilover Mazda MX-5 ND (15~) Super Racing. Super Racing coilover is used particularly in track, rally asphalt, drift and drag.

There are 2 adjustment knobs in this unit. One for the damping setting inside the barrel of shock absorber, the other is used to adjust the damping setting on the nitrogen bottle.

The compression and rebound damping settings can be adjusted separately, and above-mentioned adjustment knobs can be adjusteed separately as well. There are 1024 different settings to adjust.

This version can increase the impact of the barrel oil and the nitrogen gas space to increase the impact. The best stability of the body allows the oil temperature to be kept at the optimum working temperature for long time and intense operation. Make any changes during the operation.

Top Mount
Front: A6061 aluminium and NR strengthen rubber. (AU).
Rear: Strengthen NR rubber and ultra pressure resistant iron sheet (SS41), come with the bearing. (TU).

Front Spring
Diameter: 12,5mm
Length: 180mm
Rate: 12kg

Rear Spring
Diameter: 12mm
Length: 180mm
Rate: 9,7kg

Our design is oil and gas separately for monotube. There are diameter 44mm pistons in the strut which can contain large amount volume of shock oil for handling everlastingly and prevent the shocks from exhaustion after long-term use and absorb the bumps caused by the uneven roads. (We teat it for a million times)

All McPherson coilovers come with pillowball upper mount with camber plate. It adjusts the camber of the tires and get the tires have better turn in fast speed and enhance the stability of the vehicles.

All applications listed on our website are for 2WD model unless we specify 4WD.

The "model year" defined for each application on our website might be different from the ones in each country; therefore, please confirm the "production years" with us if you cannot make sure.

Each of our versions use the highest density foam for buffing, is not use general rubber. Because the foam have the highest density space, which absorb the huge compression force. Even if the cost of the foam is higher than rubber, we adhere to offer the best quality at the lower cost.
